Single Wall vs Double Wall Filter Baskets: What Is the Difference?

The filter basket is one of the smallest parts of an espresso machine, but it has a major influence on extraction, crema, flavor and ease of use. The two most common types are single wall filter baskets and double wall filter baskets. Although they may look similar, they control pressure in very different ways.

What Is a Single Wall Filter Basket?

A single wall filter basket, also called a non-pressurized basket, has one perforated base. During extraction, water passes through the coffee puck and exits directly through many small holes at the bottom of the basket.

The coffee itself must create the correct resistance. This means the grind size, dose, distribution and tamping pressure all need to be reasonably accurate. When these variables are well controlled, a single wall basket can produce clearer flavor, better balance and more detailed espresso.

Main Advantages of a Single Wall Basket

• Offers greater control over extraction.

• Shows the real quality and freshness of the coffee.

• Can deliver better flavor clarity and body.

• Allows experienced users to adjust recipes precisely.

Main Limitations

• Requires a suitable espresso grinder.

• More sensitive to grind size and tamping.

• Less forgiving when using stale or pre-ground coffee.

• May produce weak crema when the coffee or preparation is poor.

What Is a Double Wall Filter Basket?

A double wall filter basket, also called a pressurized basket, uses an inner perforated layer and a second outer layer with a restricted outlet. The restriction creates additional pressure after water passes through the coffee bed.

Because the basket helps regulate pressure, it can produce a visually rich layer of crema even when the grind is not perfectly dialed in. This makes it easier to use with pre-ground coffee, entry-level grinders or less consistent preparation.

Main Advantages of a Double Wall Basket

• More forgiving for beginners.

• Works better with pre-ground coffee.

• Produces crema more easily.

• Requires less precise grinding and tamping.

Main Limitations

• Provides less control over extraction.

• Can hide problems caused by stale coffee or an incorrect grind.

• Crema may look attractive without reflecting a high-quality extraction.

• Flavor can be less clean or less expressive than with a well-dialed single wall basket.

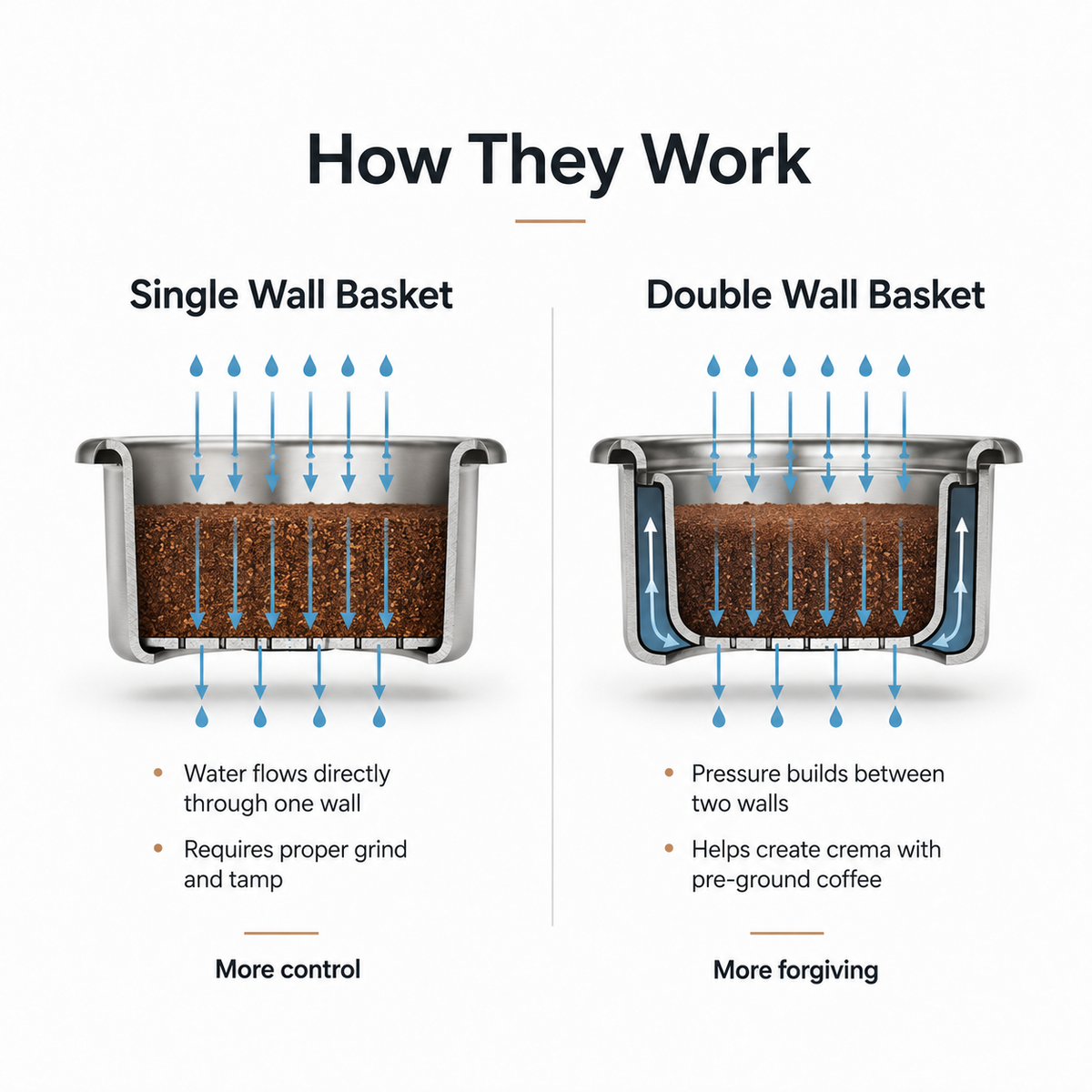

How Do They Work Differently?

With a single wall basket, pressure is mainly created by the resistance of the compacted coffee puck. If the grind is too coarse, water flows too quickly and the espresso becomes weak or sour. If the grind is too fine, flow becomes too slow and the espresso may taste bitter or over-extracted.

With a double wall basket, the restricted outlet creates additional back pressure. This makes the flow more stable even when the coffee grind is not ideal. The result is easier and more consistent, but the basket gives the user less direct control over extraction.

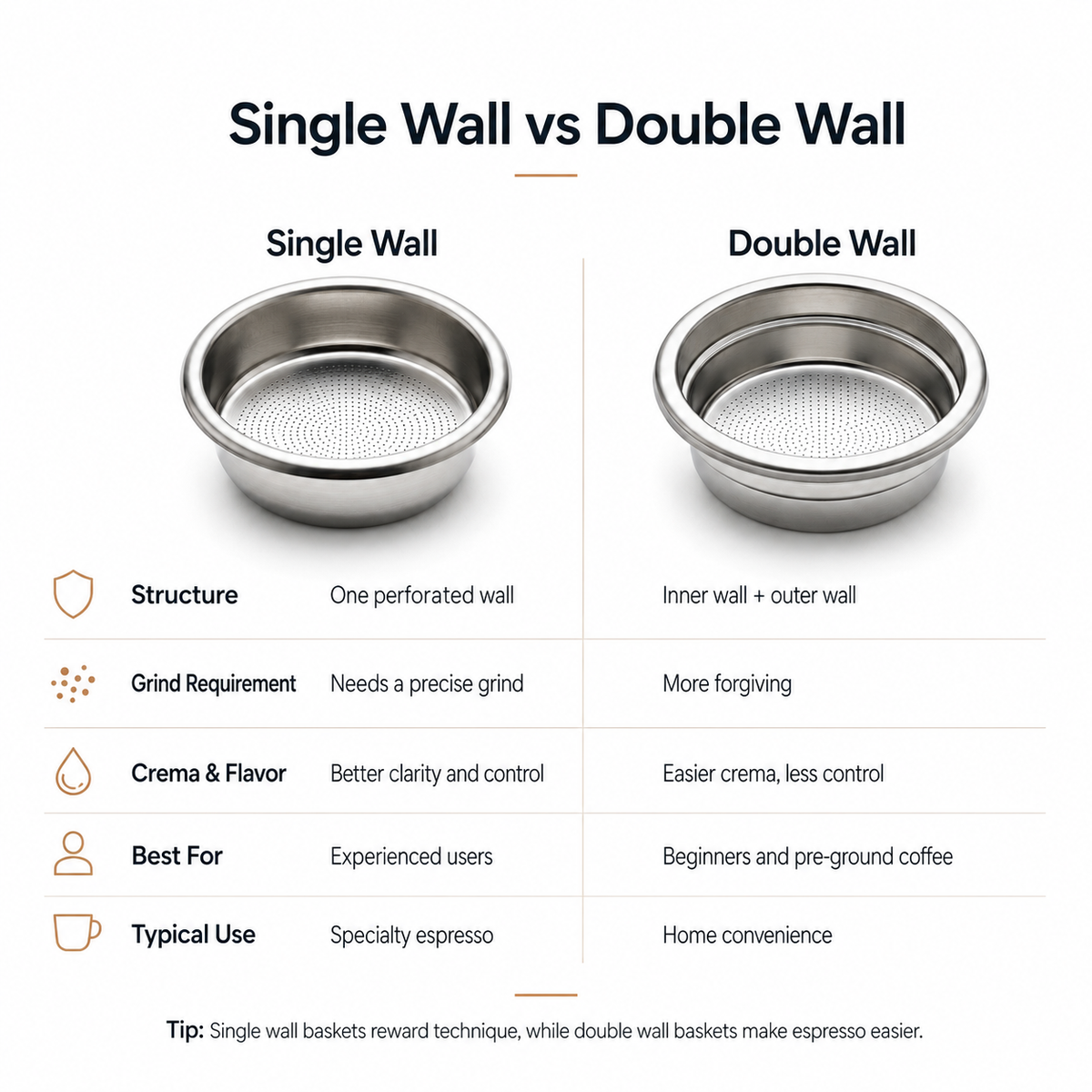

Single Wall vs Double Wall: Quick Comparison

Which Filter Basket Should You Choose?

Choose a single wall basket when you have a capable espresso grinder, use freshly roasted coffee and want more control over flavor. It is the better option for users who are willing to adjust grind size, dose and extraction time.

Choose a double wall basket when convenience and consistency are more important. It is suitable for beginners, users of pre-ground coffee and households that do not have a dedicated espresso grinder.

Many home espresso machines include both types. This gives beginners an easier starting point while allowing more experienced users to upgrade their technique later.

What Should Espresso Machine Buyers and Brands Consider?

For appliance brands and importers, the correct basket configuration depends on the target market. Entry-level home espresso machines usually benefit from double wall baskets because they reduce the learning curve. Mid-range and professional-style models should normally include single wall baskets, especially when the machine uses a 54 mm or 58 mm portafilter.

A practical retail package may include one-cup and two-cup versions of both basket types. Brands should also confirm basket diameter, coffee dose, hole pattern, stainless steel grade and compatibility with the portafilter before mass production.

Frequently Asked Questions

Does a double wall basket make better crema?

It usually creates crema more easily because the restricted outlet increases pressure and aerates the coffee. However, thicker crema does not always mean better extraction or better flavor.

Can I use pre-ground coffee in a single wall basket?

It is possible, but the result may be inconsistent because most pre-ground coffee is not adjusted for a specific espresso machine. A double wall basket is normally more suitable.

Can I replace a double wall basket with a single wall basket?

Yes, provided the basket diameter, rim shape, depth and portafilter design are compatible. A proper espresso grinder will also be needed to achieve good results.

Is a single wall basket only for commercial machines?

No. Many home espresso machines support single wall baskets, especially models designed for users who want more control over extraction.

Conclusion

Single wall and double wall filter baskets are designed for different users. A single wall basket rewards precise grinding and preparation with greater flavor control. A double wall basket makes espresso easier and more consistent, especially when using pre-ground coffee.
